Why Old Man Emu? After years of testing and abuse, there are none better!
ROAD SPRINGS… LAND-ROVER, all;
|
RR = Range Rover Classic. |
DIS = Discovery to ’99. |
DEF = Defender. |
SER = Series II-III. |
|
S = Soft. |
M = Medium. |
HD = Heavy Duty. |
DE = Diesel. |
|
P = Progressive. |
SW = Straight Wound. |
GVW = Gross Vehicle Weight. |
|
Note: Due to a weak US-Dollar vs. Aust-Dollar prices seem to change daily.
But here's what we can do for you today...
Prices do not include freight charges.|
Application |
F/R |
Part# |
Weight |
Type/Coil |
Lift |
Our Price |
Retail- pair |
|
RR-DIS-D90 |
Front |
OME760 /2760 |
to 20kg (low) |
Soft/pro |
20mm |
$225.00 | 275. |
|
RR-DIS-D90 |
Front |
OME761 /2761 |
to 50kg |
Med/SW |
30mm |
$225.00 | |
|
RR-DIS-D90 |
Front |
OME751 /2751 |
50-110kg |
HD/SW |
35mm |
$225.00 | |
| See note below... | |||||||
|
RR-DIS-D90 |
Rear |
OME764 /2764 |
to GVW |
Med/SW |
40mm |
Ditto | |
|
RR-DIS |
Rear |
OME762 /2762 |
100kg/GVW |
HD/P |
50mm |
||
|
DEF-90 |
Rear |
OME762 /2762 |
200kg/GVW |
HD/P |
50mm |
||
|
All (not 110) |
Rear |
OME763 /2763 |
200kg/GVW |
VHD/SW |
50mm |
||
| See note below... | |||||||
|
DEF 110 |
Front |
OME761 /2761 |
to 50kg |
Med/SW |
30mm |
||
|
DEF 110 |
Front |
OME751 /2751 |
50-110kg |
HD/SW |
35mm |
||
| DEF 110 | Front | OME766 /2766 | 110-220lbs | VHD | 30mm | ||
| DEF 110 | Front | OME767 /2767 | 110-220lbs | HD | 35mm | ||
|
DEF 110W |
Rear |
OME752 /2752 |
Light/GVW |
Med/P |
25mm |
||
|
DEF 110W |
Rear |
OME755 /2755 |
200kg/GVW |
HD/SW |
50mm |
||
|
DEF 110PU |
Rear |
OME755 /2755 |
200kg/GVW |
HD/SW |
50mm |
||
|
DEF 110PU |
Rear |
OME754 /2754 |
300kg/GVW |
VHD/SW |
50mm |
||
| See note below... | |||||||
|
DISCO II |
Front |
OME776 /2776 |
to 20kg |
Soft/SW |
40mm |
||
|
DISCO II |
Front |
OME777 /2777 |
to 50kg |
Med/SW |
40mm |
||
|
DISCO II |
Front |
OME779 /2779 |
50 to 110kg |
HD/SW |
40mm |
||
|
DISCO II |
Rear |
OME781 /2781 |
|
Med/SW |
40mm |
||
|
DISCO II |
Rear |
OME762 /2762 |
100kg to GVW |
HD/PW |
40mm |
||
|
DISCO II |
Rear |
OME763 /2763 |
200kg to GVW |
HD/SW |
40mm |
||
*When fitting Med or HD springs on Dicso/RR/Defender we highly suggest the fitment of OMESB0069 Bushing set (see listing below).
*Freelander's must visit alignment shop after spring swap.

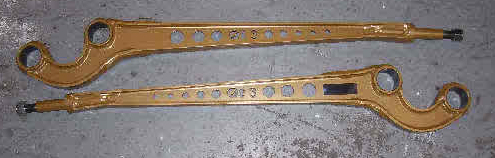

#BR3671R $325.00 Plus postage (color may vary)
3-degree adjusted/Lightweight radius arm, 45mm wide.
Revised May 39 2020
**************************************************
SHOCKS… LAND-ROVER (other applications available on request);
|
Application |
F/R |
Part# |
Type |
New OM Part# |
Our Price-ea |
Retail-each |
|
RR-DIS-DEF90-110 |
Front |
N45F |
Med |
$127.00 | $142.00 | |
| RR-DIS-DEF90-110 | Front | N115 | HD | 60037 | $127.00 | ea |
|
RR-DIS-DEF90-110W |
Rear |
N46 |
Med |
60038 | $127.00 | |
|
RR-DIS-DEF90-110PU |
Rear |
N44 |
HD |
60146 | $127.00 | |
| RR-DIS-DEF90-110SW | Rear | 60039 | Sport | 60039 | $127.00 | |
| D110HD-Extended | Rear | 60147 | EXT | 60147 w/500kg springs | $127.00 | ea |
| Upper Shock Mount, | Rear | FK64 | Coil | call | ||
|
SER 88"-109" |
Front |
N78(1) |
Med |
501444 & 502532HD | $120.00 | ea |
|
SER 80" 86" 88" |
Rear |
60062(1) |
Med |
501445 | $120.00 | |
|
SER 107" 109" |
Rear |
N69(1) |
Med |
27693 | $120.00 | |
| SER 109" | Rear | N44 | HD | $120.00 | ||
| (1) must use OMEB9 bushing to fit these to 88" or 109". | ||||||
|
Discovery II/RR P38 |
Front |
N107 |
Med |
$140.00 | ea | |
|
Discovery II |
Front |
N107C |
Sport |
60024 | $140.00 | |
|
Discovery II |
Rear |
N108 |
Med |
60026 | $140.00 | |
|
Discovery II |
Rear |
N108C |
Sport |
60025 | $140.00 | |
| ALL coil sprung LR's | F/R | LTR |
OME LTR Remote Reservoir Shocks |
$299.00 | $299.00 | |
| Range Rover P38 | Front | N177 | 145.00 | ea | ||
| Range Rover P38 | Rear | N176 | 145.00 | ea | ||
| BILSTEIN GAS SHOCKS | ||||||
|
Application |
F/R |
Part# |
Type |
Factory# for Ref |
Our Price-ea |
Retail-each |
|
RR-DIS-DEF90-110 |
Front |
B46-0243 |
Firm |
RTC4629K | $140.00 | $160.00 |
|
RR-DIS-DEF90-110W |
Rear |
B46-0253 |
Firm |
RTC4630K | $140.00 | |
| RR 93-95 EAS | Front | B46-2153 | Firm | $140.00 | ||
| RR 93-95 EAS | Rear | B46-2152 | Firm | $140.00 | ||
| RR 95-2000 4.0/4.6L | Front | B46-2214 | Firm | $156.00 | $151.00 | |
| RR 95-2000 4.0/4.6L | Rear | B46-2215 | Firm | $156.00 | $151.00 | |
| DiscoII 1999-2004 | Front | 24-060462 | Firm | $165.00 | $201.00 | |
| DiscoII 1999-2004 | Rear | 24-060479 | Firm | $165.00 | $201.00 |
Steering Dampers & Castor Kits... LAND-ROVER
|
DEF90-110 |
Steering Damper |
OMESD32 |
RTC4472 | $85.50 | $105.10 |
|
RR-DIS-SER |
Steering Damper |
OMESD11 |
RTC3670 | $85.50 | $105.10 |
| Disco-II | Steering Damper | OMESD02 | $85.50 | $105.10 | |
|
DEF110 |
Castor Kit, 2 degrees |
CALR1 |
$95.00 | $95.77 | |
|
DIS-DEF90 |
Castor Kit, 2 degrees |
CALR2 |
$108.10 | $125.46 | |
|
All Coil Type |
Spring Spacer |
OME80PF05 5mm |
$10.95 |
$14.53 |
|
|
All Coil Type |
Spring Spacer |
OME80PF10 10mm |
$15.95 |
$18.95 |
SUSPENSION BUSHINGS… LAND-ROVER
|
Kit Part# |
Description |
Qt |
Application |
Price-kit |
| TBA | ||||
|
OMESB65 |
Panhard Bush |
4 |
RR-DIS-DEF |
$33.79 |
|
OMESB66 |
Radius Arm Bush-Chassis |
4 |
RR-DIS-DEF |
$36.20 |
|
OMESB67 |
Radius Arm Bush-Axle ‘72-‘86 |
8 |
RR-DEF |
$72.07 |
|
OMESB68 |
Trailing Arm Bush-Chassis 16mm |
2 |
RR-DIS-DEF |
$101.59 |
|
OMESB69* |
Trailing Arm Bush-Chassis 20mm |
2 |
RR-DIS-DEF NAS Cars |
$101.59 |
|
OMESB70 |
Trailing Arm Bush-Axle |
4 |
RR-DIS-DEF |
$37.55 |
|
OMESB71 |
A-Frame Bush |
4 |
RR-DIS-DEF |
$39.73 |
|
OMESB72 |
Radius Arm Bush ’86 on |
8 |
RR-DIS-DEF |
$74.26 |
|
OMESB73 |
Panhard Bush ‘70-’86 |
4 |
RR |
$35.55 |
|
OMESB74 |
Radius Arm Bush-Chassis |
4 |
RR-DIS-DEF |
$37.55 |
|
OMESB75 |
Spring Bush - leaf, Front |
6 |
Series II/III |
discon |
|
OMESB76 |
Spring Bush - leaf, Rear |
6 |
Series II/III |
discon |
|
OMEB15 |
Shock Bush, lower |
1 |
Series II/III (243057) |
$26.06 |
|
OMEB14 |
Shock Bush, upper |
1 |
Series II/III (243057) |
$24.08 |
|
OMEB78 |
Steering Damper Bush |
1 |
RR-DIS-DEF-SER |
$9.95 |
|
OMEB42 |
Shock Bush |
1 |
RR-DIS-DEF-109" |
$31.00 |
Installation Notes:
When installing any suspension
parts, always use Anti-Seize compound on threads.
SPRING REFERENCE MATERIAL…
|
Color Code |
Part# |
Rating |
#-Coils |
Length |
Fitment |
|
Double WHITE |
NRC8044 |
210lbs |
7.5 |
15.13" |
L/F-Disco |
|
Double YELLOW |
NRC8045 |
210lbs |
7.5 |
14.49" |
R/F-Disco |
|
BLUE |
NRC6388 |
180lbs |
6.0 |
16.22" |
L/R-110Wagon w/leveler |
|
GREEN/WHITE |
NRC7000 |
180lbs |
6.0 |
16.22" |
R/R-110Wagon w/leveler |
|
BLUE/GREEN |
NRC9446 |
175lbs |
6.36 |
15.2" |
L/F-DEF90, DIS HD |
|
BLUE/YELLOW |
NRC9447 |
175lbs |
6.36 |
14.80" |
R/F-DEF90, DIS HD |
|
GREEN/YEL/RED |
NRC9462 |
230lbs |
15.25" |
L/R-DEF90 NAS |
|
|
GREEN/YEL/WHITE |
NRC9463 |
230lbs |
14.81" |
R/R-DEF90 NAS |
|
|
BLUE/WHITE |
NRC4306 |
133lbs |
7.55 |
16.44" |
L/R-RR-DIS to 96 |
|
GREEN/PINK |
NTC3285 |
180lbs |
10.21 |
17.13" |
L/R-RR 87-91 |
|
PINK/PURPLE |
NRC8113 |
180lbs |
8.75 |
16.5" |
R/R-RR 87-91 |
|
BLUE/RED |
NRC9448 |
225lbs |
6.61 |
15.30" |
R/F-DEF110HD |
|
YELLOW/WHITE |
NRC9449 |
225lbs |
14.80" |
L/R-DEF110HD |
|
|
RED/GREEN |
NRC6904 |
330lbs |
6.5 |
15.6" |
L/R-DEF110HD |
|
RED |
NRC6389 |
330lbs |
6. |
14.30" |
R/R-DEF110HD |
|
GREEN |
NRC2119 |
150lbs |
7.6 |
16.13" |
RR 91-93 NAS |
|
RED/YELLOW |
NRC4305 |
150lbs |
7.65 |
17.18" |
RR 91-93 NAS |
|
GREEN/BLUE/YEL |
NRC8477 |
178lbs |
18.175" |
F-HD Disco Winch Springs |
|
|
GREEN/YELLOW |
NRC4234 |
170lbs |
7 |
16.20" |
RR |
|
BLUE |
572315 |
133lbs |
7.2 |
15.4" |
Frt-RR 70- |
|
RED/WHITE |
NRC4304* |
170lbs |
7 |
16.95" |
Rear-RR-HD SW (620101) 70- |
|
N/A |
NRC2119* |
N/A |
N/A |
Frt-RR-HD SW (90575625) 70- |
|
| * = Range Rover Rally Specification, Good combination. | |||||
We offer a number of Sway-bars and quad-shock kits for all coil sprung Rover's.
*******************************************************************
P38 Range Rover Coil Spring Conversions, 1995-2001.
Tired of spending untold $ on repairing your EAS?
#9520LB Spring Kit, Standard Height. $1050.00
#9520LBHD Spring Kit, Off-Road/Heavy Duty. $1150.00
Installation is $ call
*******************************************************************
Interested in Parabolic Suspension for your Land Rover? Call us.
We offer Parabolic Springs on a Special Order basis only.
STANDARD LEAF SPRINGS… LAND-ROVER
|
88" Front-Petrol |
241282 Dri 242863 Pass |
165lbs |
8 leaf |
|
|
88" Front-Diesel |
264563 Dri 276034 Pass |
268lbs/HD |
11 leaf |
|
|
109" Front-Diesel |
276034 Dri 265627 Pass |
260lbs/HD |
11 leaf |
|
|
88" Rear-Pet/Diesel |
517583 Dri 517589 Pass |
165lbs |
11 leaf |
|
|
88" Rear-Diesel |
241285 Dri 265989 Pass |
HD |
11 leaf |
(use HD shocks) |
|
109" Rear-Pet/Diesel |
279678 Dri 279679 Pass |
Dual Rate |
10 leaf |
(Wagon fitment only) |
|
109" Rear-Pet/Diesel |
272968 Dri 272968 Pass |
HD |
12 leaf |
(use HD shocks) |
